planck_ez

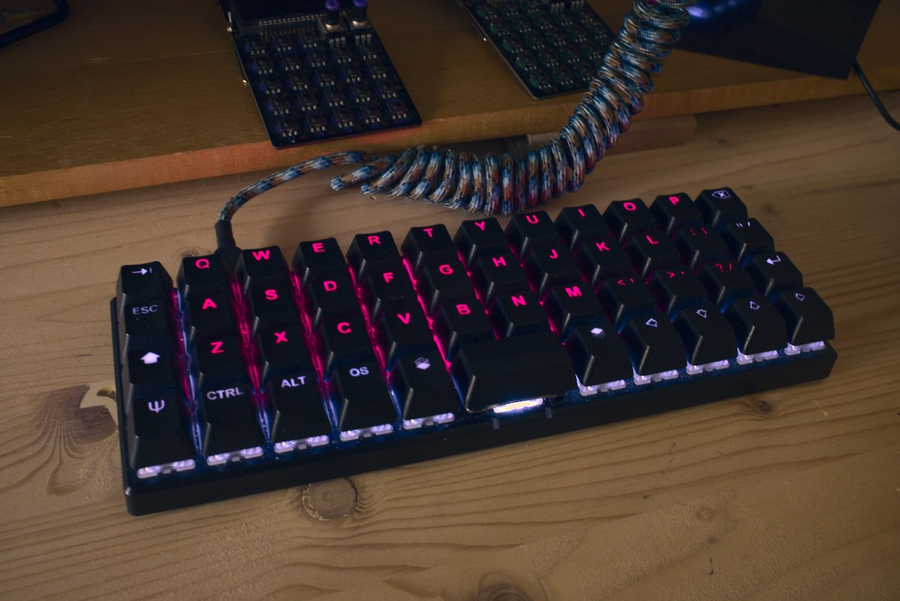

An ortholinear keyboard with 47 keys.

A small, portable and highly configurable keyboard that I use with RASP/UTIN and the pocketchip. It features a 4x12 layout and Cherry MX Brown mechanical switches with double ring silencers.

To make up for the few keys, it can be configured to activate different layouts with a press of the "raise" or "lower" keys.

Keymap

The keymap is configured to be as versatile as possible while leaning torwards programming.

,------------------------------------- 0: Base -------------------------------------.
|  Tab |   Q  |   W  |   E  |   R  |   T  |   Y  |   U  |   I  |   O  |   P  | Bksp |
|------+------+------+------+------+-------------+------+------+------+------+------|
|  Esc |   A  |   S  |   D  |   F  |   G  |   H  |   J  |   K  |   L  |   ;  |   '  |
|------+------+------+------+------+------|------+------+------+------+------+------|
| Shift|   Z  |   X  |   C  |   V  |   B  |   N  |   M  |   ,  |   .  |   /  |Enter |
|------+------+------+------+------+------+------+------+------+------+------+------|
|Extend| Ctrl | GUI |  Alt |Lower |    Space     | Raise| Left | Down |  Up  |Right |
`-----------------------------------------------------------------------------------'
,------------------------------------ 1: Lower -------------------------------------.
|   ~  |   !  |   @  |   #  |   $  |   %  |   ^  |   &  |   *  |   (  |   )  | Ins  |
|------+------+------+------+------+-------------+------+------+------+------+------|
|  Esc |  F1  |  F2  |  F3  |  F4  |  F5  |  F6  |   _  |   =  |   {  |   }  |  |   |
|------+------+------+------+------+------|------+------+------+------+------+------|
| RCtrl|  F7  |  F8  |  F9  | F10  | F11  | F12  |      |      |      |      |Enter |
|------+------+------+------+------+------+------+------+------+------+------+------|
|      |      |      |      |      |             |      | Home | PgDn | PgUp | End  |
`-----------------------------------------------------------------------------------'
,------------------------------------ 2: Raise -------------------------------------.
|   `  |   1  |   2  |   3  |   4  |   5  |   6  |   7  |   8  |   9  |   0  | Del  |
|------+------+------+------+------+-------------+------+------+------+------+------|
|  Del |      |      |      |      |      |      |   -  |   +  |   [  |   ]  |  \   |
|------+------+------+------+------+------|------+------+------+------+------+------|
|      |      |      |      |      |      |      |      |      |      |      |      |
|------+------+------+------+------+------+------+------+------+------+------+------|
|      |      |      |      |      |             |      |BRGTH-|BRGTH+| Vol- | Vol+ |
`-----------------------------------------------------------------------------------'
,------------------------------------ 3: Adjust ------------------------------------.
|      |      |      |      |      |      |      |      |      |      |      |      |
|------+------+------+------+------+-------------+------+------+------+------+------|
|      |      |      |      |      |      |      |      |BRGTH+|BRGTH-|      |      |
|------+------+------+------+------+------|------+------+------+------+------+------|
|      |      |      |      |      |      |      |      |CLRTGL|LGTTGL|      |      |
|------+------+------+------+------+------+------+------+------+------+------+------|
|      |      |      |      |      |             |      |      |      |      | Prnt |
`-----------------------------------------------------------------------------------'
,----------------------------------- 4: Extend -------------------------------------.
|      |      |      |      |      |WheelU|WheelD|      |      |      |      |      |
|------+------+------+------+------+-------------+------+------+------+------+------|
|      |      |      |      |      |LClick|RClick|      |      |      |      |      |
|------+------+------+------+------+------|------+------+------+------+------+------|
|      | MLeft| MDown| MUp  |MRight|      |      | MLeft| MDown| MUp  |MRight|      |
|------+------+------+------+------+------+------+------+------+------+------+------|
|      |      |      |      |      |             |      |      |      |      | Prnt |
`-----------------------------------------------------------------------------------'
